Types de boîtier

encombrement et fixations

Tableau de présentation des boitiers

Type of Housing Volume (L*W*H) in mm Picture Main application Mounting Type Available connectors Main Drawing .Pdf CAD Files .Step*
Primary Secondary
SC3
61*61*66

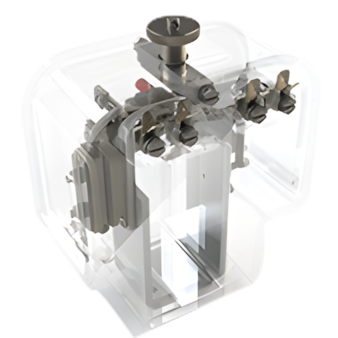

SC3
Voltage Relay (LV)
Current relay < 20 A
Panel mounting
PCB mountng
Pins Ø2.5mm
Solder lugs
Pins Ø2.5mm
Solder lugs
SC3 relay drawing
SC3 Relais
SC3 Socket
SCB
54*54*62.5
SCB
Voltage Relay (LV)
Current relay < 20 A
Panel mounting
PCB mountng
Pins Ø2.5mm
Solder lugs
Pins Ø2.5mm
Solder lugs
SCB relay drawing
SCB Relais
SCB Socket
SCD
60*30*66
SCD
Voltage Relay (LV)
Current relay < 20 A
Panel mounting
PCB mountng
Pins Ø2.5mm
Solder lugs
Pins Ø2.5mm
Solder lugs
SCD relay drawing
SCD Relay
SCD Socket
MK120
MK160
MK200
MK240
MK160CAM ***
MK200CAM ***
MK240CAM ***
MK120 | 120*78*93
MK160 | 160*78*93
MK160CAM | 160*78*122
MK200 | 200*78*93
MK200CAM | 200*78*122
MK240 | 240*78*93
MK240CAM | 240*78*122
Techno-elec - Types de boîtier
Techno-elec - Types de boîtier
Voltage relay
Current relay < 50 A
Differential voltage relay
Differential current relay < 50 A
Specific relay
Panel mounting
DIN mounting
Screw terminal M4 (LV+HV)
Screw terminal M6
Flat terminal double - 6.3mm
Screw terminal M4
Screw terminal M6
Flat terminal double - 6.3mm
Push in type connector (PC)
MK(120-160-200-240) drawing
MK(160-200-240)CAM drawing
MK120**
MK160**
MK160 CAM**
MK200**
MK200 CAM**
MK240**
MK240 CAM**
BB **** Off the Busbar | 67*56*50 BB Current relay
Busbar mounting
Screw (M8-M16)****
Screw terminal M4
Flat terminal double - 6.3mm
Push in type connector (PC)
(Others solutions available)
BB Relay drawing
BB Relay protected drawing
BB Relay - Screw terminal M4
BB Relay - Flat terminal double
BB Relay - Push in type connector 4P (PC)
BB Relay - Push in type connector 8P (PC)
BB Relay protected - Screw terminal M4
QDI **** Off the Busbar | 150*90*80 Techno-elec - Types de boîtier Differential current relay
Busbar mounting
Insulator mounting
Screw (M8-M16) ****
Screw terminal M4
Flat terminal double - 6.3mm
(Others solutions available)
QDI relay drawing
QDI Relay - Flat terminal double

* The proposed 3D files are not exhaustive. To obtain the CAD file for a precise reference product, please contact us.
** Primary / secondary circuit terminals not shown.
*** The « CAM » versions can be used to provide passive cooling in case of high power dissipation.
**** The dimensions of the busbar can be adapted according to the customers’ needs.

Other arrangements and boxes may be available depending on customers’ needs, please contact us.
